Home > Led TV
Led TV
Loading...

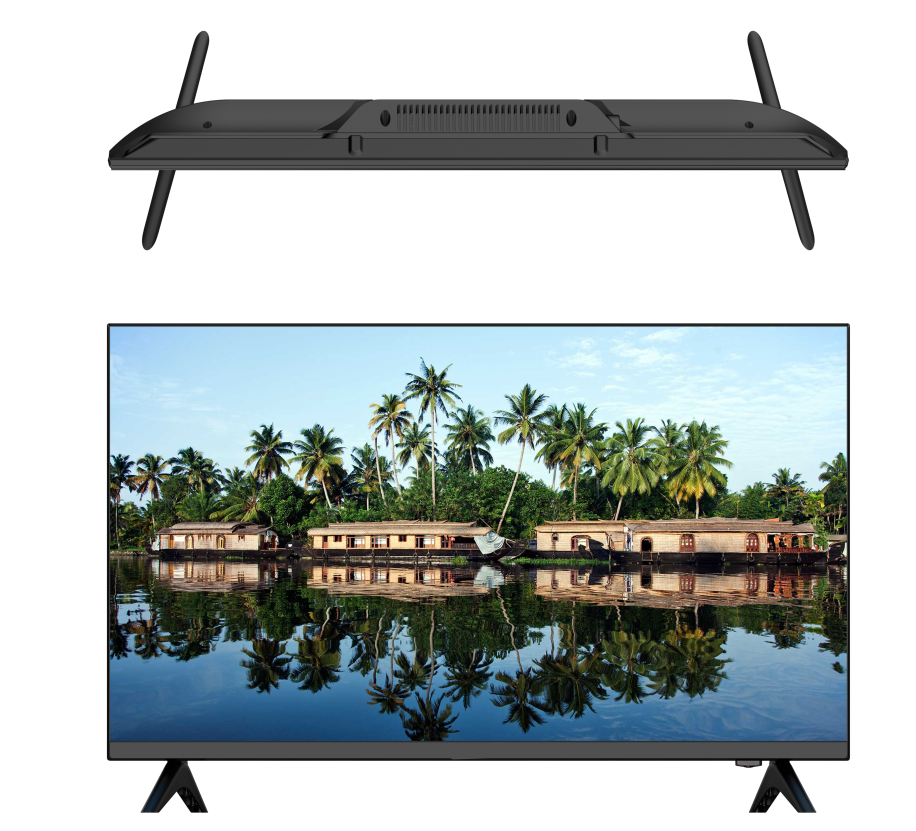

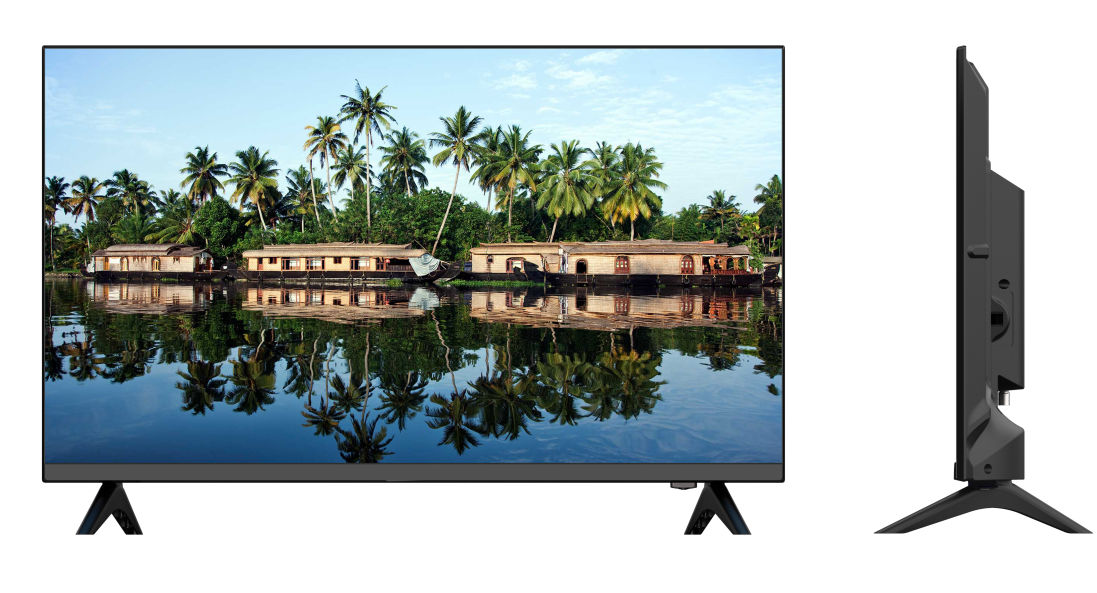

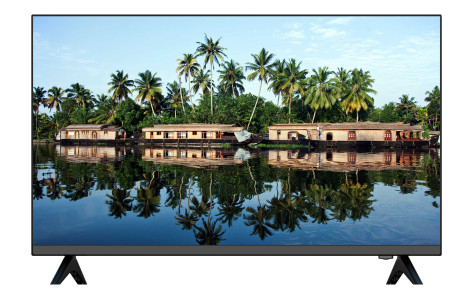

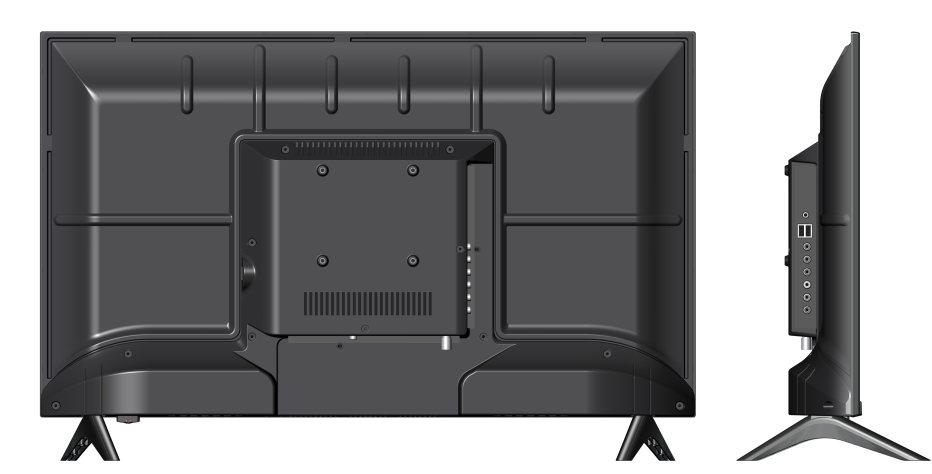

K430E1

FEATURES:

 Features: ATV*1 (IEC), AV in*1 (RCA3), USB*1, HDMI*1, PC*1, PC audio*1, earphone*1;

Analog TV system: PAL, SECAM, NTSC, PAL-M/N;

USB slot: support audio/image/video;

With HDMI function@1080p, 720p, refresh frequency is 50/60Hz;

Multi Languages

Speaker:3D 8Ω10W*2 , power consumption 12W;

Adapter power: 100-240V AC, 12V DC or direct 100-240V AC

Optional 1: 2*AV+Game;

Optional 2: digital TV ISDB-T, DVB-T/T2/S2/C, ATSC; Dolby Function

Support AOSP WEBOS VIDAA SYSTEM for Youtub Netflix.ANDROID11 2G+16G



  • Product Detail

Size & Aspect Ratio

43"(16:9)

Size & Aspect Ratio

43"(16:9)

Back Light

HKC/BOE/PANDA/CMO/SHARP

Back Light

HKC/BOE/PANDA/CMO/SHARP

Minimum order Qty (OEM)

1x40HQ

Minimum order Qty (OEM)

1x40HQ

Loading Capacity 20"/40"/40"HQ

228pcs/462pcs/530pcs

Loading Capacity 20"/40"/40"HQ

228pcs/462pcs/530pcs

Pixel Pitch

0.15125(H) x 0.46125(V)

Pixel Pitch

0.15125(H) x 0.46125(V)

Active area

952.0(H)×551.0(V)mm

Active area

952.0(H)×551.0(V)mm

Max. Color

1.06B

Max. Color

1.06B

Resolution

1920 x 1080

Resolution

1920 x 1080

Contrast Ratio

5000:1

Contrast Ratio

5000:1

Brightness

350cd/㎡

Brightness

350cd/㎡

View Angle(CR≥10)

176°(H)/176°(V)

View Angle(CR≥10)

176°(H)/176°(V)

LED backlight life

100,000hours

LED backlight life

100,000hours

Response Time(Typ)

6.5ms

Response Time(Typ)

6.5ms

TV Standard & Set Up

TV Standard & Set Up

Video System

PAL/SECAM/NTSC-3.58,NTSC-4.43,PAL-60

Video System

PAL/SECAM/NTSC-3.58,NTSC-4.43,PAL-60

Sound System

B/G, D/K, I,L,L',M.N

Sound System

B/G, D/K, I,L,L',M.N

Sound Effect

MTS, Spatial Stereo, Dynamic Bass

Sound Effect

MTS, Spatial Stereo, Dynamic Bass

Sound output

10W X2

Sound output

10W X2

SOUND SYSTEM

B/G;D/K;I;L/L

SOUND SYSTEM

B/G;D/K;I;L/L

STEREO SYSTEM

YES

STEREO SYSTEM

YES

NICAM

YES

NICAM

YES

Deinterlace / Comb filter

3D

Deinterlace / Comb filter

3D

3D Video Noise Reduction

YES

3D Video Noise Reduction

YES

OSD LANGUAGE Multi-language

English/French/German/Spanish/Italian/Dutch/Portuguese/Arabic,etc

OSD LANGUAGE Multi-language

English/French/German/Spanish/Italian/Dutch/Portuguese/Arabic,etc

Connectors

Connectors

AV

x1

AV

x1

VGA

x1

VGA

x1

HDMI

x3

HDMI

x3

PC Audio Input

x1

PC Audio Input

x1

YPbPr or YCbCr (COMPONENT)

x1

YPbPr or YCbCr (COMPONENT)

x1

Headphone

x1

Headphone

x1

USB

X2

USB

X2

Analog tuner

x1

Analog tuner

x1

Coax digital output

optional

Coax digital output

optional

CI

optional

CI

optional
