Indoor Wall Mount Digital Signage
Loading...
32" indoor wall mount Signage

Application:Indoor                       Color:Support customize

Panel Size:32”                            Model Number:U3231
Brand Name:UWY                          Product name:Lcd Advertising Display

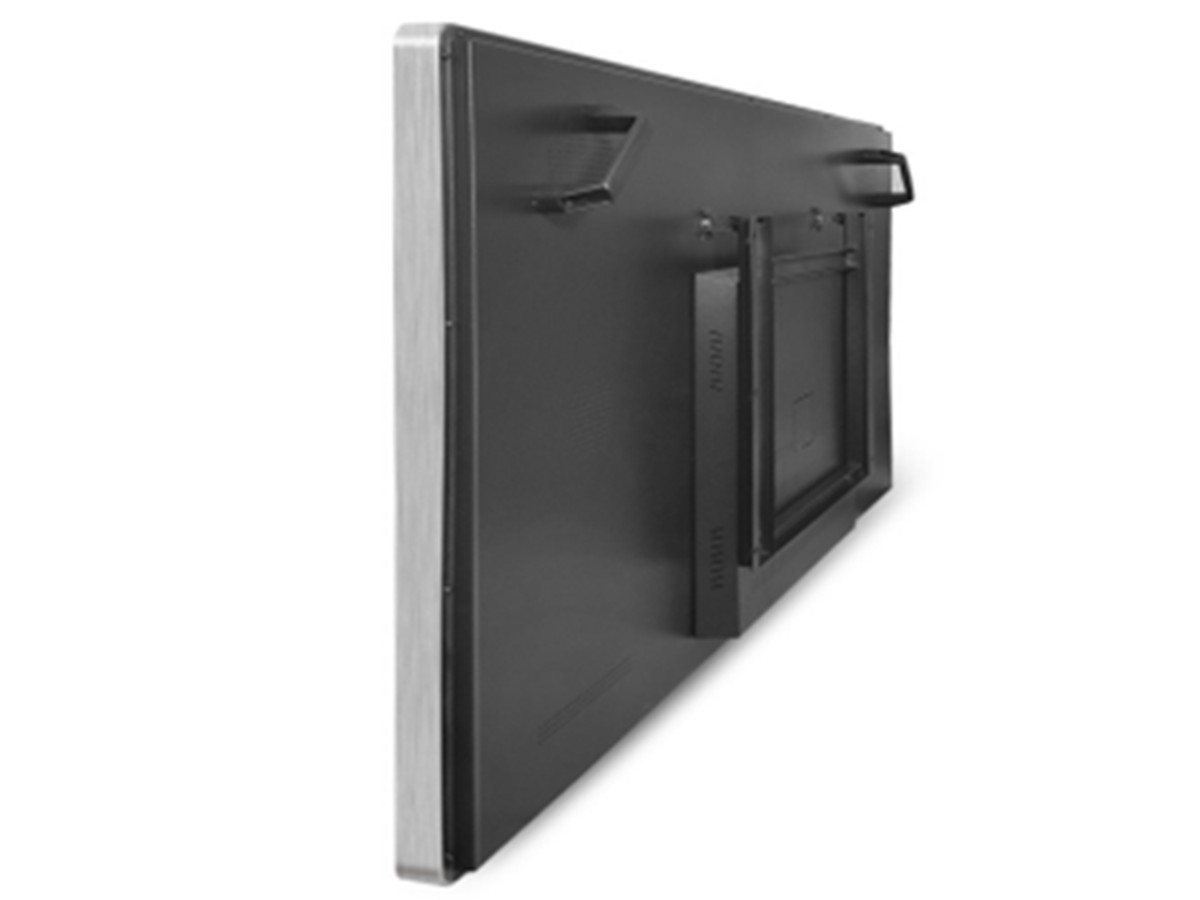

Panel brand:100% A+ Grade Brand Panel  Installation:Wall Mountable

Touch screen:Capacitive/IR Touch(Optional)

Operating system:Android/Windows 7/8/10/Linux

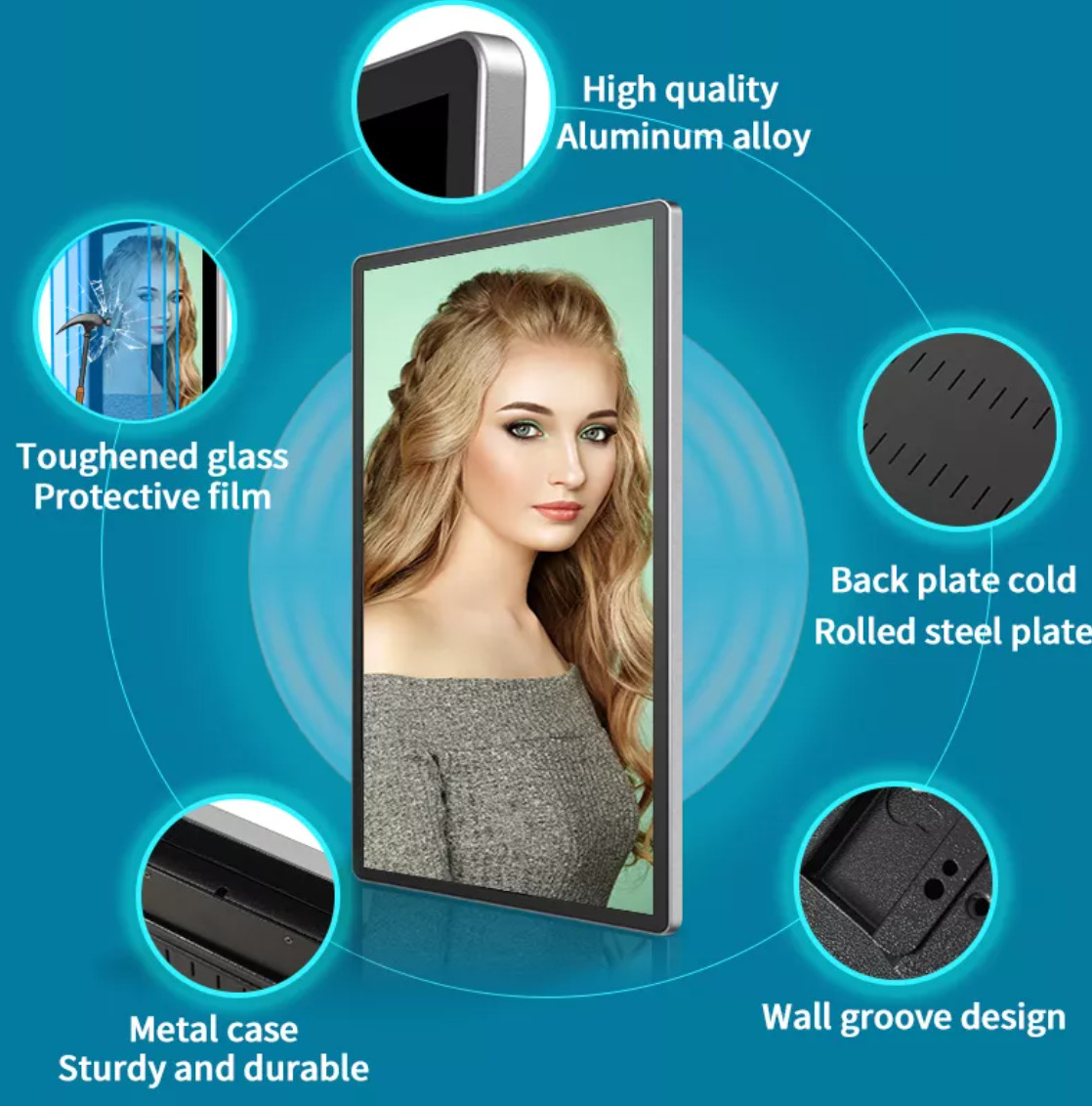

Material:Metal Case + Toughened Glass Panel

LOGO:Customized Logo Acceptable

Input Voltage:AC100~240V 50 /60 HZ

  • Product Detail

Versions:(customize)

1.USB version

2.Android
WiFi Version

4.Android WiFi+
Capacitive Touch

5.Windows WiFi+ IR/Capacitive Touch

RAM

w/o

2GB

2GB

4GB DDR3

Internal memory

w/o

16GB

16GB

64GB SSD

Operation system

w/o

Android 6.0/7.1/8.0

Android 6.0/7.1/8.0

Win10(not activated)

Touch screen

w/o

w/o

Capacitive Touch

w/o or IR or capacitive

Display screen:

32" LCD FHD IPS  full view angle screen, 1920*1080 FHD, LED backlight

View angle: 178/178, IPS panel; Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9

WiFi

w/o

WiFi 802.11

WiFi 802.11

WiFi 802.11

3G/4G

w/o

optional

optional

optional

Ethernet RJ45

w/o

yes

yes

yes

Buletooth

w/o

yes

yes

yes

SD Card slot

yes

yes

no

w/o

USB port

yes, 1xUSB

yes, 2xUSB

yes, 2xUSB

yes, 4xUSB

WiFi port

w/o

yes

yes

yes

RJ45

w/o

yes

yes

yes

on/off switch

yes

yes

yes

yes

Video format

MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p

Audio format

MP3/WMA/AAC etc.


jpeg,etc.

Power consumption

42W

56W

72W

118W

Speaker

2*5W

2*5W

2*5W

2*5W

Front Camera

w/o

w/o

w/o

w/o

Language

Multi-language

Multi-language

Multi-language

English

Adapter

Internal power board (AC100-240V)

Packing:

Unit Size(Without packaging) L75.4*W44.8*H7.6cm
honeycomb Carton packing : 1pcs/carton,     carton specification: 91.5*21*60cm,         n.weight: 14.35 kg,         g.weight: 19.25 kg

Accessories:

AC cable, packing box, wall-mount bracket
