Indoor Wall Mount Digital Signage
Loading...
55" Indoor Wall Mount Digital signage

FEATURES:

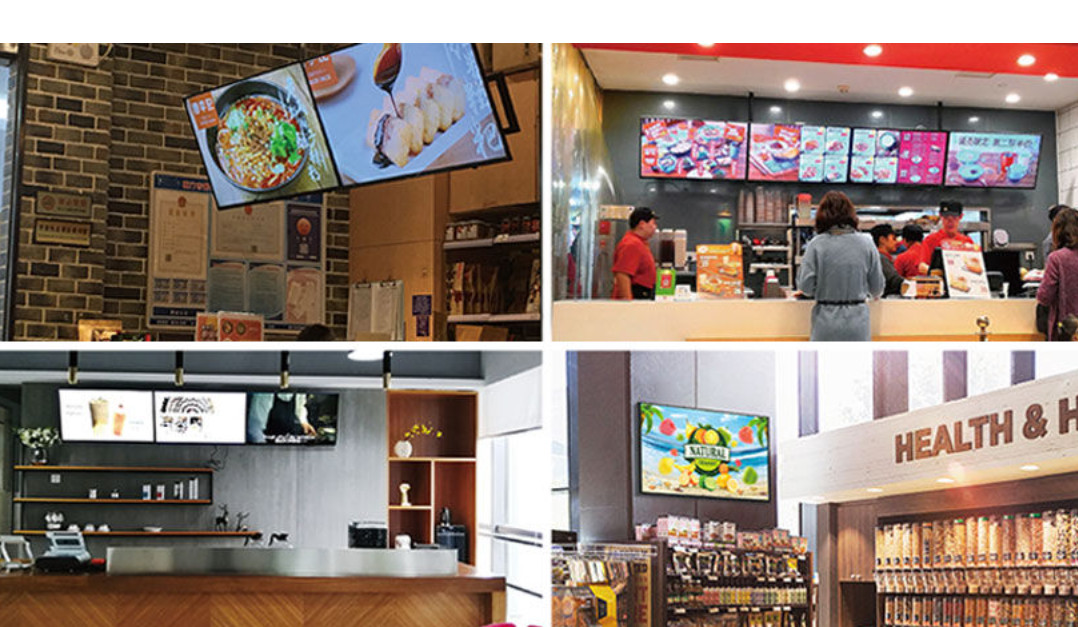

Wall mounted series is commercial grade LCD screen technology with Android OS or Windows OS. They can be used in a wide public environments,including retail, restaurants (as Digital Menu Boards), hotels,schools, hospitals, corporate.

1. Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.

2. Support 7*24 Hours long time playback
3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal.

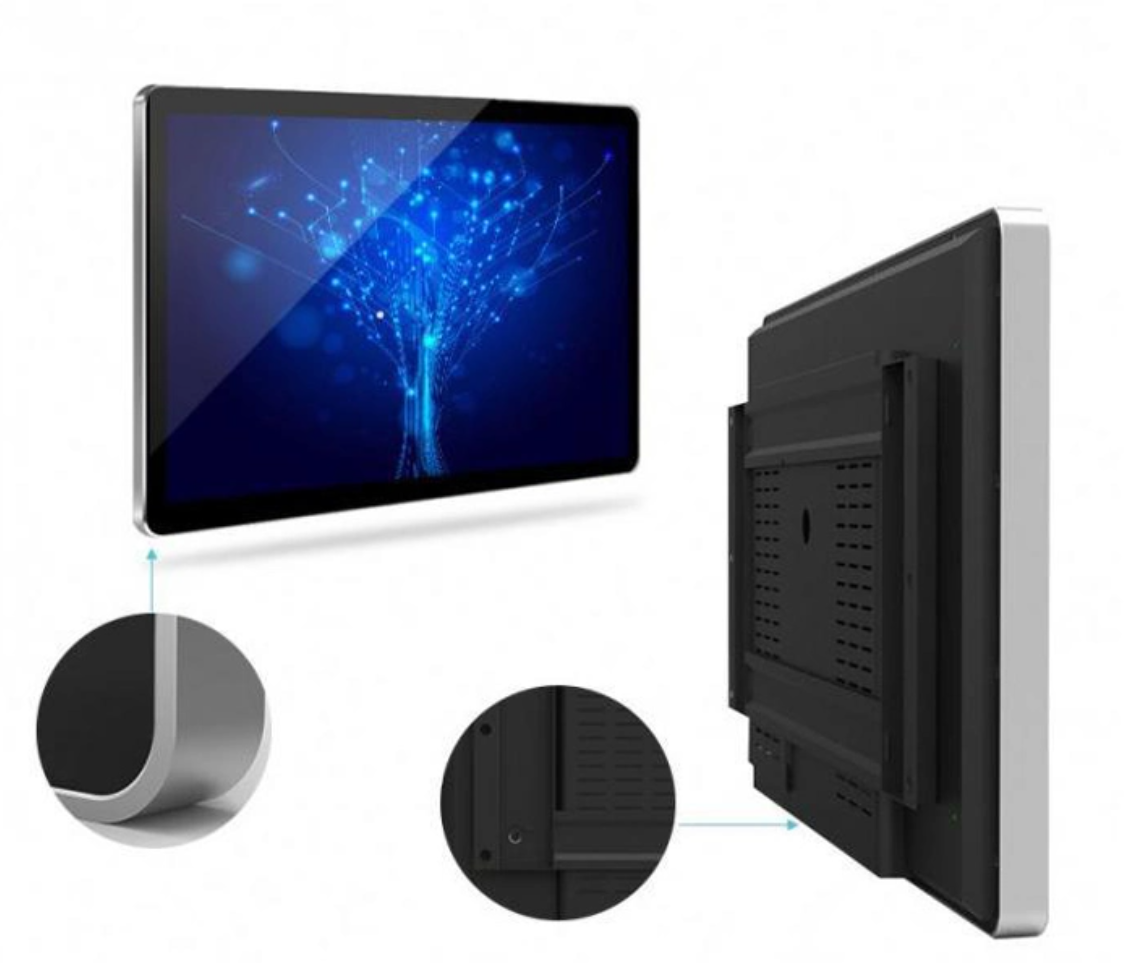

4. Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.
5. With wall mounting bracket, support portrait or landscape installation.

  • Product Detail

Versions:(customize)

1.USB version

2.Android
WiFi Version

3.Android WiFi+
IR Touch

4.Android WiFi+
Capacitive Touch

5.Windows WiFi+ IR/Capacitive Touch

RAM

w/o

2GB

2GB

2GB

4GB DDR3

Internal memory

w/o

16GB

16GB

16GB

64GB SSD

Operation system

w/o

Android 6.0/7.1/8.0

Android 6.0/7.1/8.0

Android 6.0/7.1/8.0

Win10(not activated)

Touch screen

w/o

w/o

IR Touch

Capacitive Touch

w/o or IR or capacitive

Display screen:

55" LCD FHD IPS  full view angle screen, 1920*1080 FHD(optional 4K UHD), LED backlight

View angle: 178/178 IPS panel; Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9

WiFi

w/o

WiFi 802.11

WiFi 802.11

WiFi 802.11

WiFi 802.11

3G/4G

w/o

optional

optional

optional

optional

Ethernet RJ45

w/o

yes

yes

yes

yes

Buletooth

w/o

yes

yes

yes

yes

SD Card slot

yes

yes

yes

no

w/o

USB port

yes, 1xUSB

yes, 2xUSB

yes, 2xUSB

yes, 2xUSB

yes, 4xUSB

WiFi port

w/o

yes

yes

yes

yes

RJ45

w/o

yes

yes

yes

yes

on/off switch

yes

yes

yes

yes

yes

Video format

MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p

Audio format

MP3/WMA/AAC etc.


jpeg, etc.

Power consumption

106W

128W

140W

145W

165W

Speaker

2*5W

2*5W

2*5W

2*5W

2*5W

Front Camera

w/o

w/o

w/o

w/o

w/o

Language

Multi-language

Multi-language

Multi-language

Multi-language

English

Adapter

Internal power board (AC100-240V)

Packing:

Unit Size(Without packaging)L129*W76*H8.2cm
Carton qty:1 pcs: L138*W14*H87 cm         g.weight: 37.3 kg
wooden carton qty: 6pcs: 147*92*103 cm,      n.weight: 223.8 kg,      g.weight: 272.55 kg

Accessories:

AC cable, packing box, wall-mount bracket
