Home > Indoor Stand floor digital signage
Indoor Stand floor digital signage
Loading...

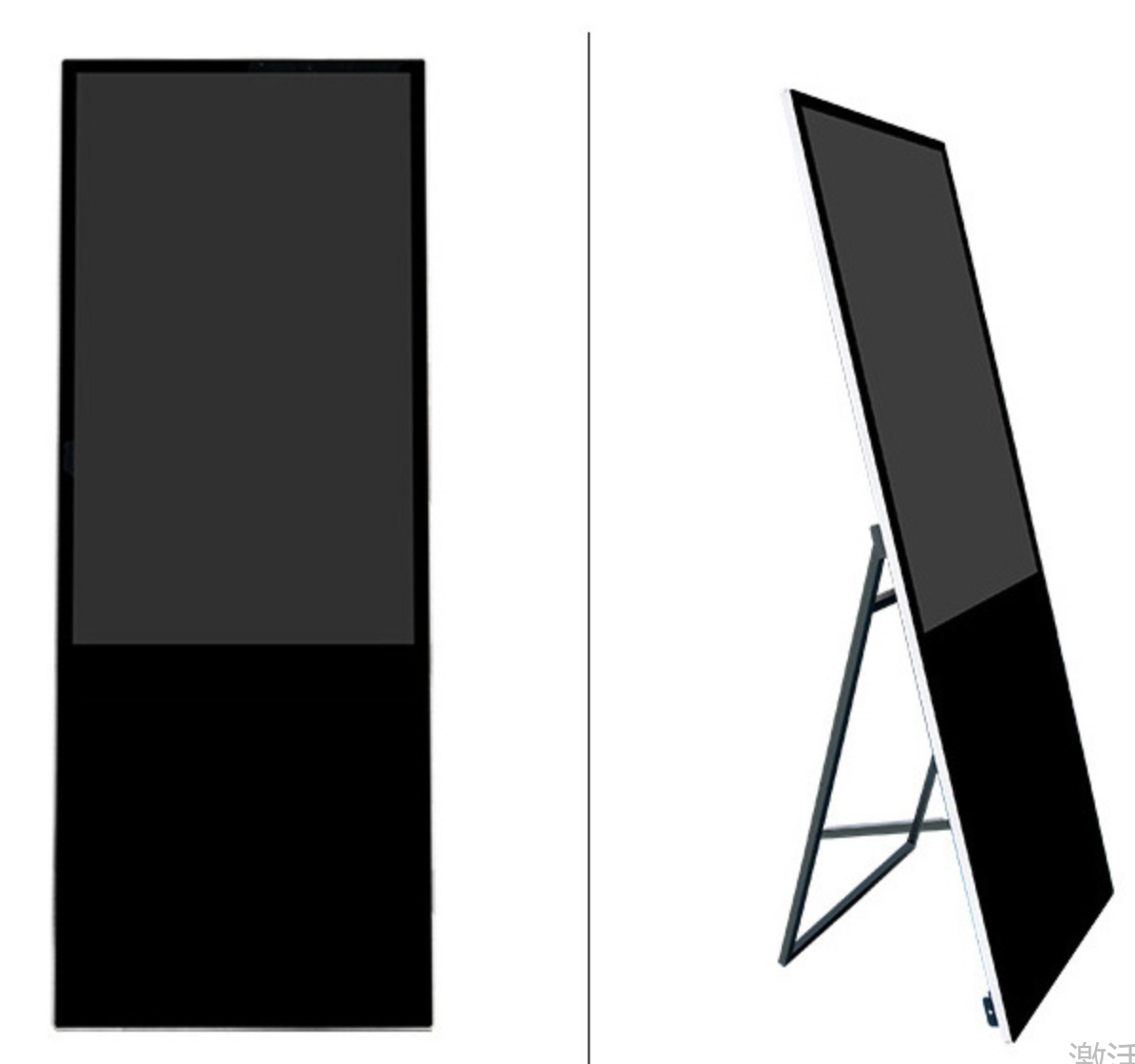

32"Indoor Stand Floor Digital Signage

FEATURES:

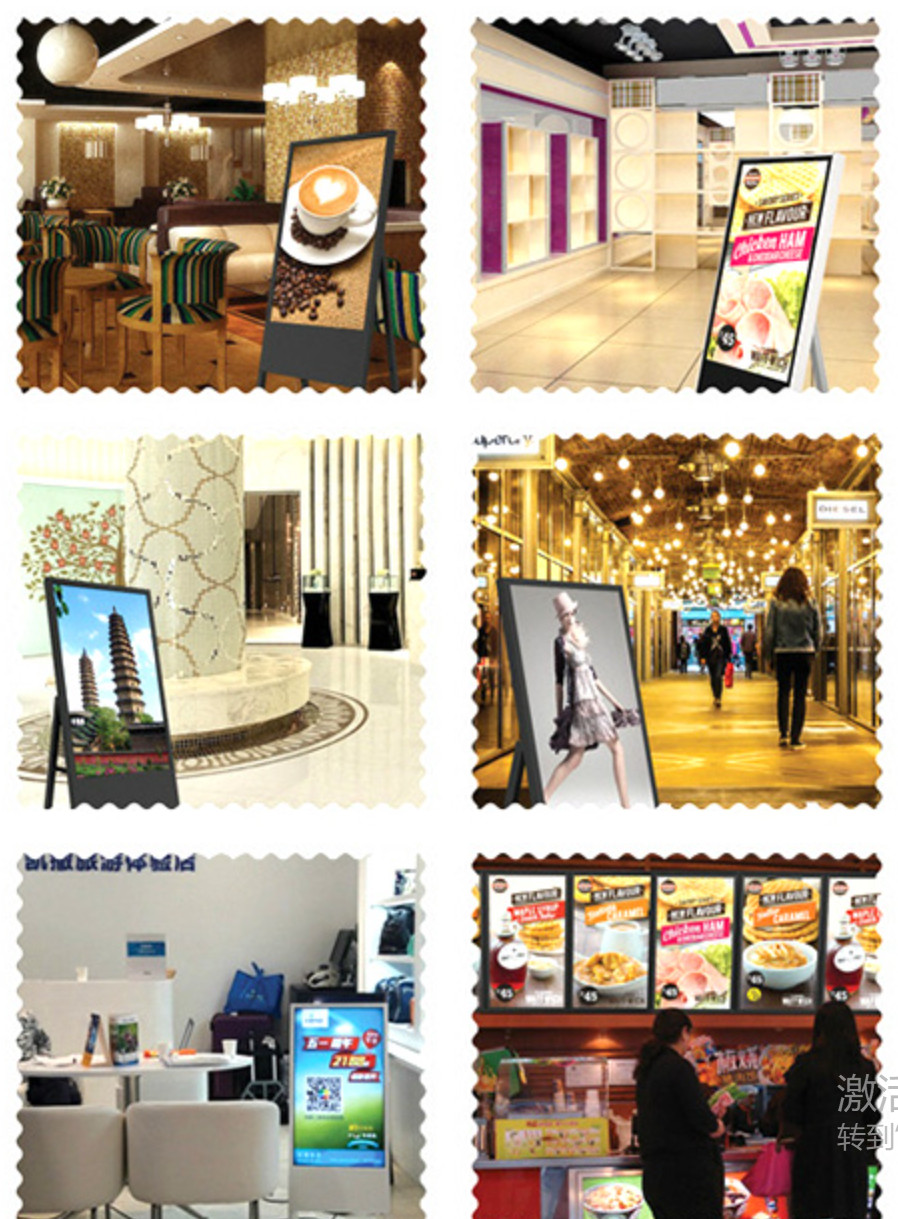

Stand floor signage series is commercial grade LCD screen technology with Android OS or Windows OS. They can be used in a wide public environments,including retail, restaurants (as Digital Menu Boards), hotels,schools, hospitals, corporate.

1. Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.

2. Support 7*24 Hours long time playback
3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal.
4. Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.

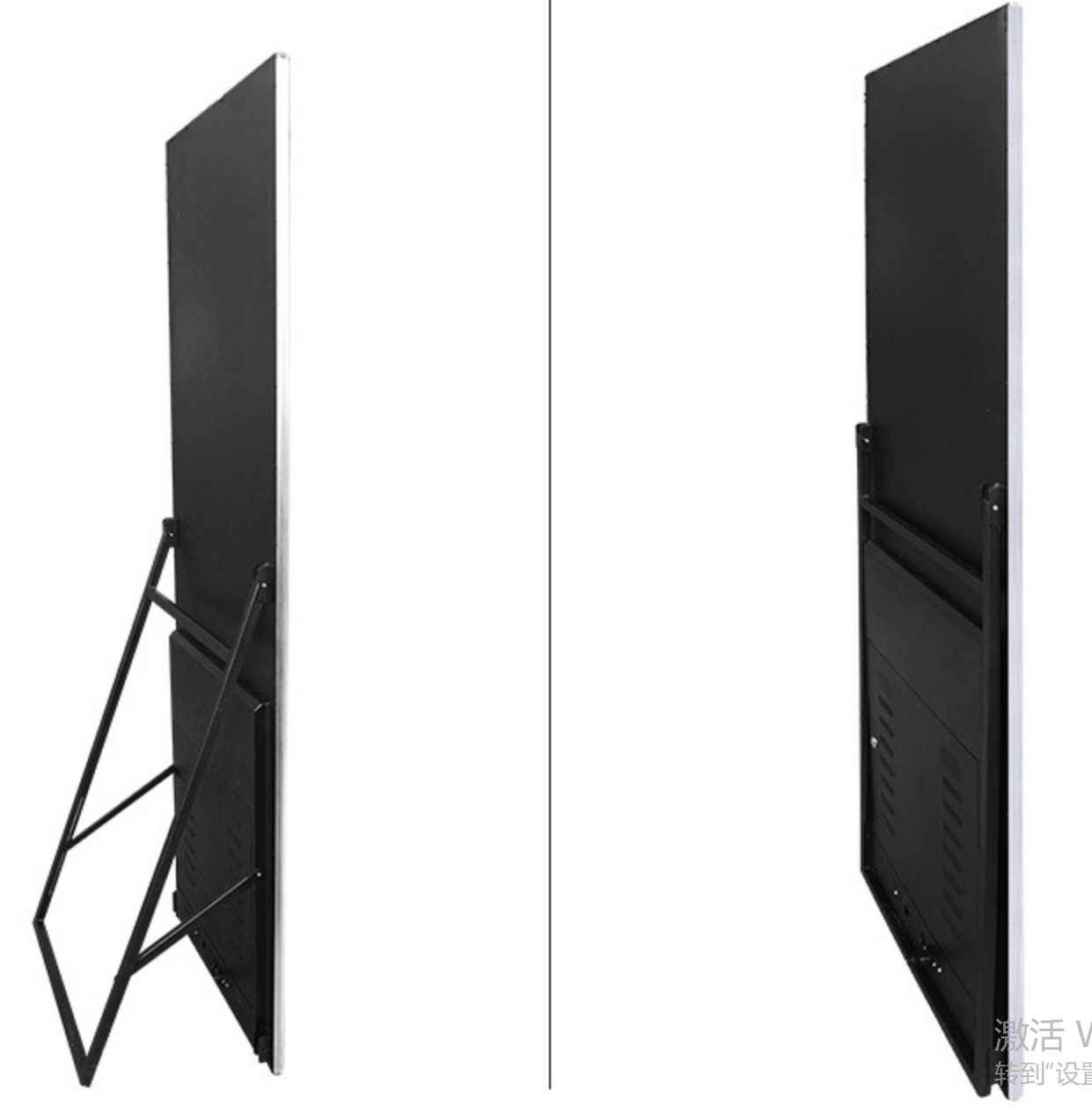

5. With wall mounting bracket, support portrait or landscape installation.

  • Product Detail

Versions:(customize)

1.USB version

2.Android
WiFi Version

4.Android WiFi+
Capacitive Touch

5.Windows WiFi+
IR/Capacitive Touch

RAM

w/o

1GB(optional 2GB)

1GB(optional 2GB)

4GB DDR3

Internal memory

w/o

8GB(optional 16GB)

8GB(optional 16GB)

64GB SSD

Operation system

w/o

Android 8.1(10.0,11.0, 12.0)

Android 8.1(10.0,11.0, 12.0)

Win10(not activated)

Touch screen

w/o

w/o

Capacitive Touch

w/o or IR or capacitive

Display screen:

32"  full view angle screen, 1920*1080 FHD, LED backlight

View angle:178/178(H,V) IPS panel; Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9

WiFi

w/o

WiFi 802.11

WiFi 802.11

WiFi 802.11

Wood Carton Cost:

6pcs in 1 wooden carton $145, 1pcs sample in wooden carton $70/pcs;

3G/4G

w/o

optional

optional

optional

Ethernet RJ45

w/o

yes

yes

yes

Buletooth

w/o

yes

yes

w/o

SD Card slot

yes

yes

no

w/o

USB port

yes, 1xUSB

yes, 3xUSB

yes, 3xUSB

yes, 4xUSB

WiFi port

w/o

yes

yes

yes

RJ45

w/o

yes

yes

yes

on/off switch

yes

yes

yes

yes

Video format

MPEG-1,MPEG-2,MPEG-4,H.264, etc.,support up to 1080p

Audio format

MP3/WMA/AAC etc.


jpeg, etc.

Power consumption

42W

56W

72W

96W

Speaker

3W

3W

3W

3W

Front Camera

w/o

w/o

w/o

w/o

Language

Multi-language

Multi-language

Multi-language

English

Adapter

Internal power board (AC100-240V)

Packing:

each unit packed by paper carton
optional: honeycomb carton or woodend carton

Accessories:

AC cable, packing box, ground base
