FEATURES:

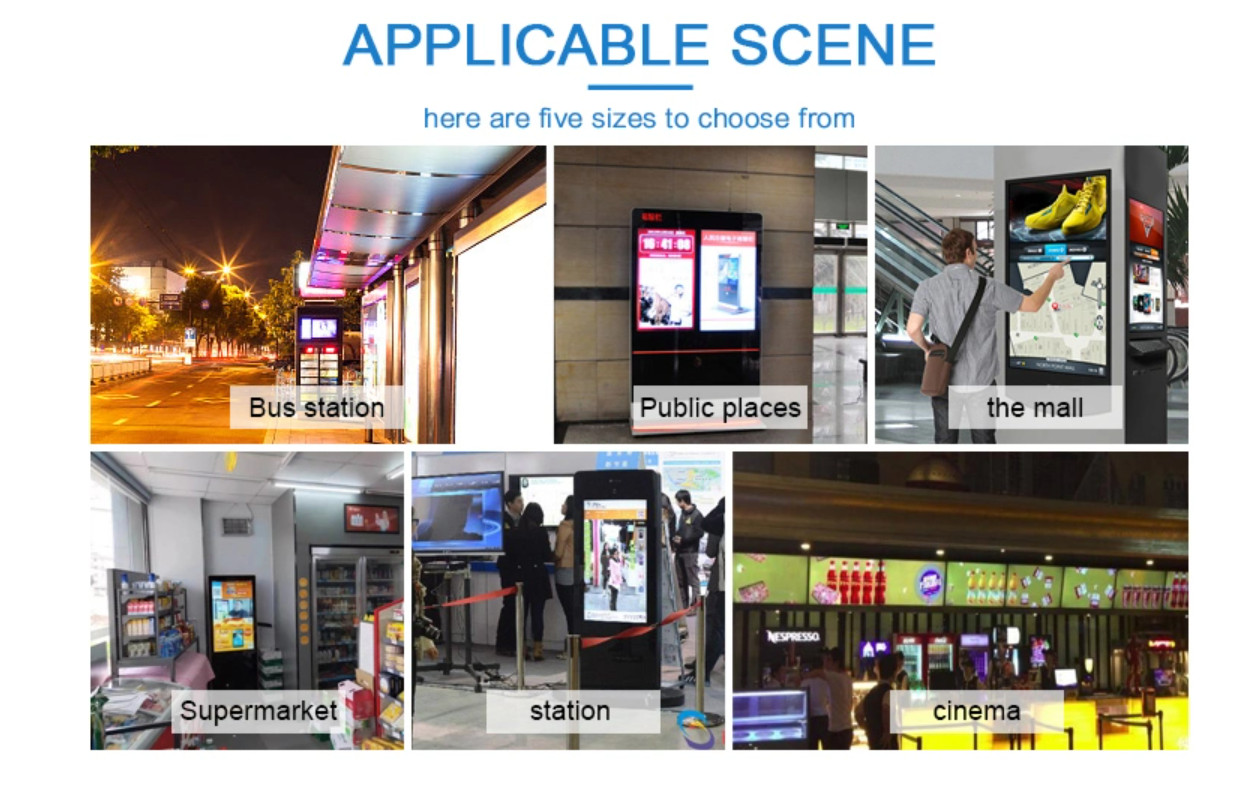

Stand floor signage series is commercial grade LCD screen technology with Android OS or Windows OS. They can be used in a wide public environments,including retail, restaurants (as Digital Menu Boards), hotels,schools, hospitals, corporate.
1. Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.
2. Support 7*24 Hours long time playback
3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal.

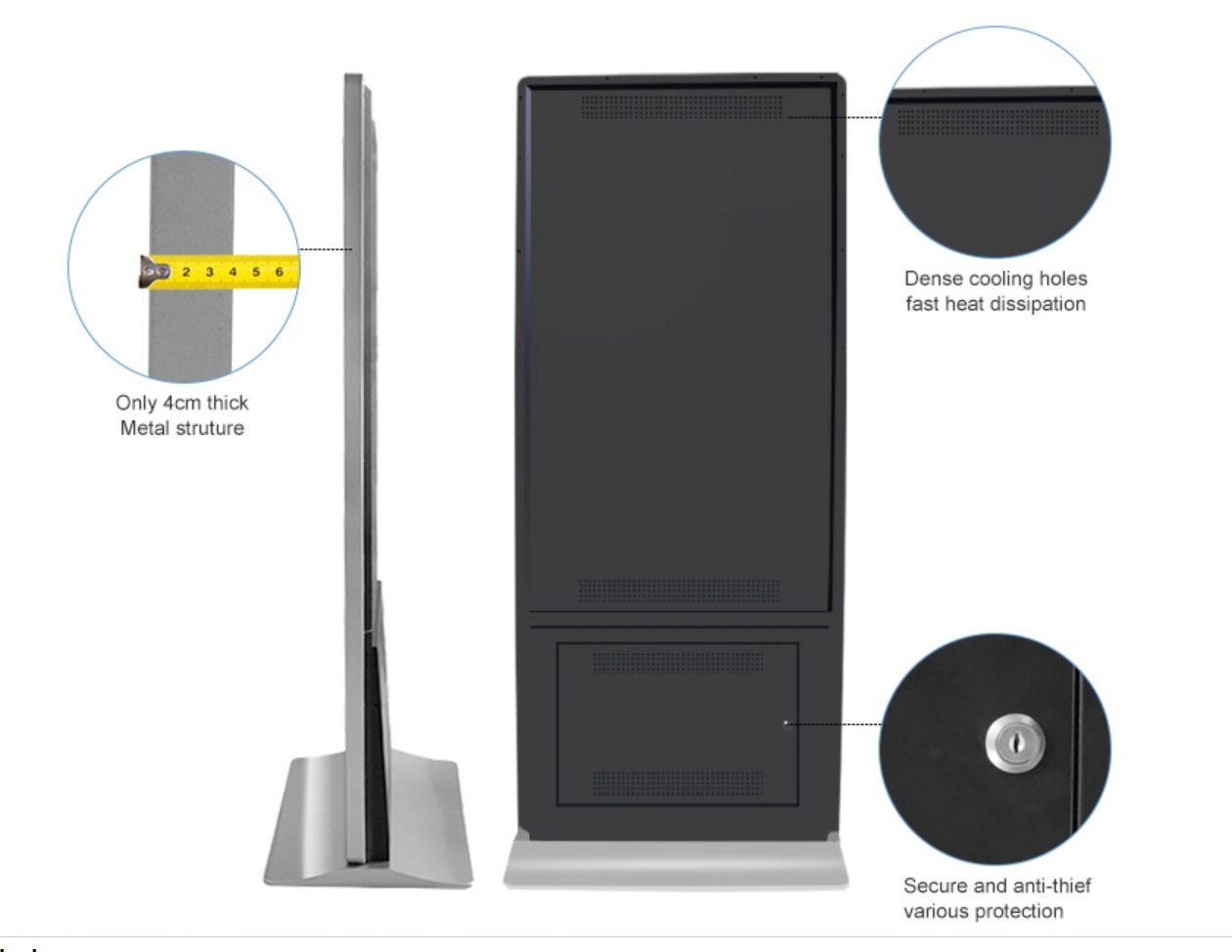

4. Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.
5. With wall mounting bracket, support portrait or landscape installation.

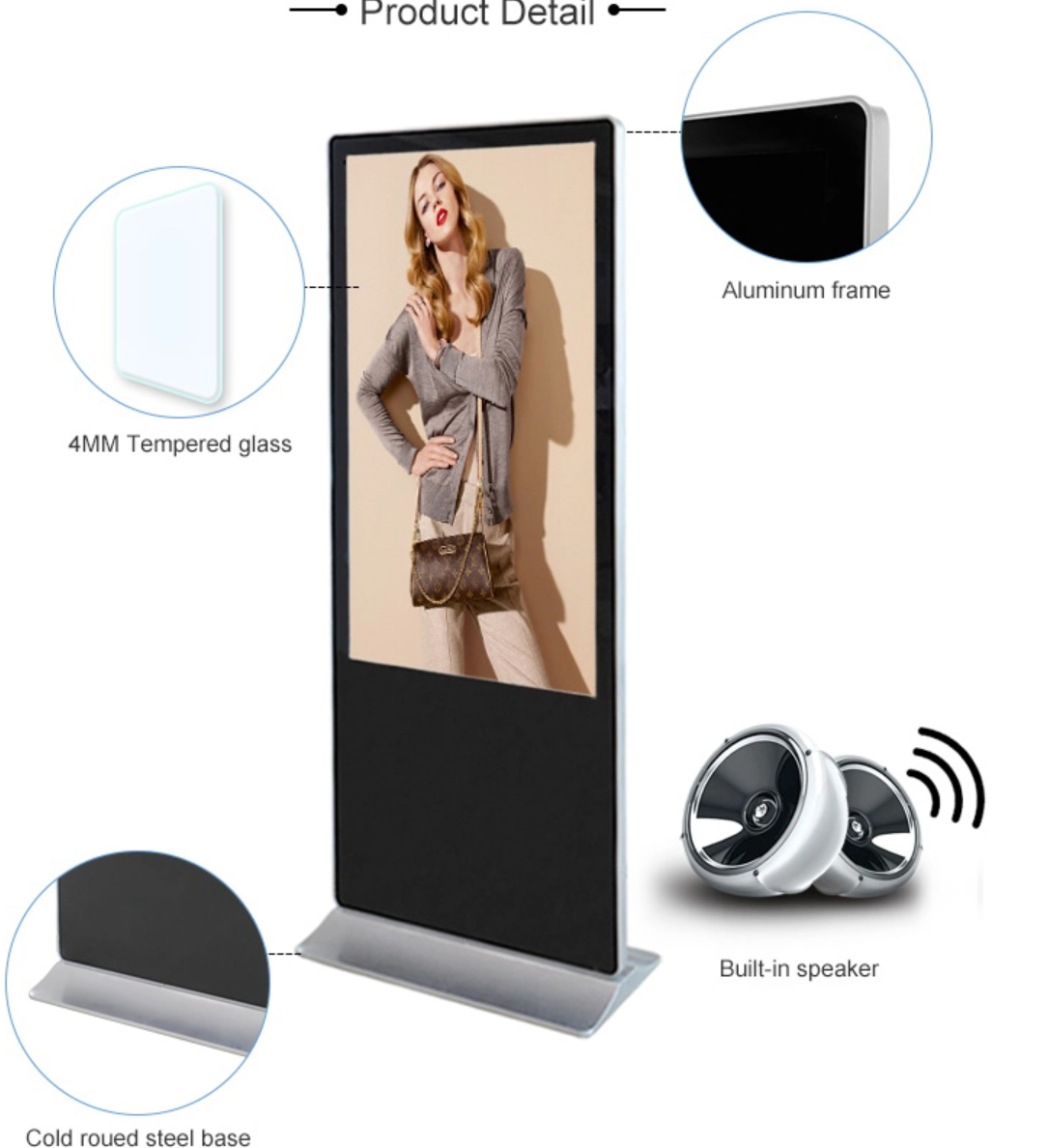

- Product Detail
|
Versions:(customize) |
1.USB version |
2.Android |
3.Android WiFi+ |
4.Android WiFi+ |
5.Windows WiFi+ IR/Capacitive Touch |
|
RAM |
w/o |
2GB(4/8/16GB) |
2GB(4/8/16GB) |
2GB(4/8/16GB) |
4GB DDR3 |
|
Internal memory |
w/o |
16GB(32/64/128GB) |
16GB(32/64/128GB) |
16GB(32/64/128GB) |
64GB SSD |
|
Operation system |
w/o |
Android 7.1(8.0/10.0/11/12) |
Android 7.1(8.0/10.0/11/12) |
Android 7.1(8.0/10.0/11/12) |
Win10(not activated) |
|
Touch screen |
w/o |
w/o |
IR Touch |
Capacitive Touch |
w/o or IR or capacitive |
|
Display screen: |
70" LCD FHD IPS full view angle screen, 1920*1080 FHD(optional 4K UHD), LED backlight | ||||
|
View angle: 178/178 IPS panel; Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9 | |||||
|
WiFi |
w/o |
WiFi 802.11 |
WiFi 802.11 |
WiFi 802.11 |
WiFi 802.11 |
|
3G/4G |
w/o |
optional |
optional |
optional |
optional |
|
Ethernet RJ45 |
w/o |
yes |
yes |
yes |
yes |
|
Buletooth |
w/o |
yes |
yes |
yes |
yes |
|
SD Card slot |
yes |
yes |
yes |
no |
w/o |
|
USB port |
yes, 1xUSB |
yes, 2xUSB |
yes, 2xUSB |
yes, 2xUSB |
yes, 4xUSB |
|
WiFi port |
w/o |
yes |
yes |
yes |
yes |
|
RJ45 |
w/o |
yes |
yes |
yes |
yes |
|
on/off switch |
yes |
yes |
yes |
yes |
yes |
|
Video format |
MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p | ||||
|
Audio format |
MP3/WMA/AAC etc. | ||||
|
Photo |
jpeg, etc. | ||||
|
Power consumption |
130W |
165W |
175W |
180W |
190W |
|
Speaker |
2*5W |
2*5W |
2*5W |
2*5W |
2*5W |
|
Front Camera |
w/o |
w/o |
w/o |
w/o |
w/o |
|
Language |
Multi-language |
Multi-language |
Multi-language |
Multi-language |
English |
|
Adapter |
Internal power board (AC100-240V) | ||||
|
Packing: |
each unit packed by paper carton Unit Size(Without packaging): 1648.48*601*30mm Carton (With Paper Box, 1 unit) Display area: 1538*541mm | ||||
|
Accessories: |
AC cable, packing box, ground base | ||||
