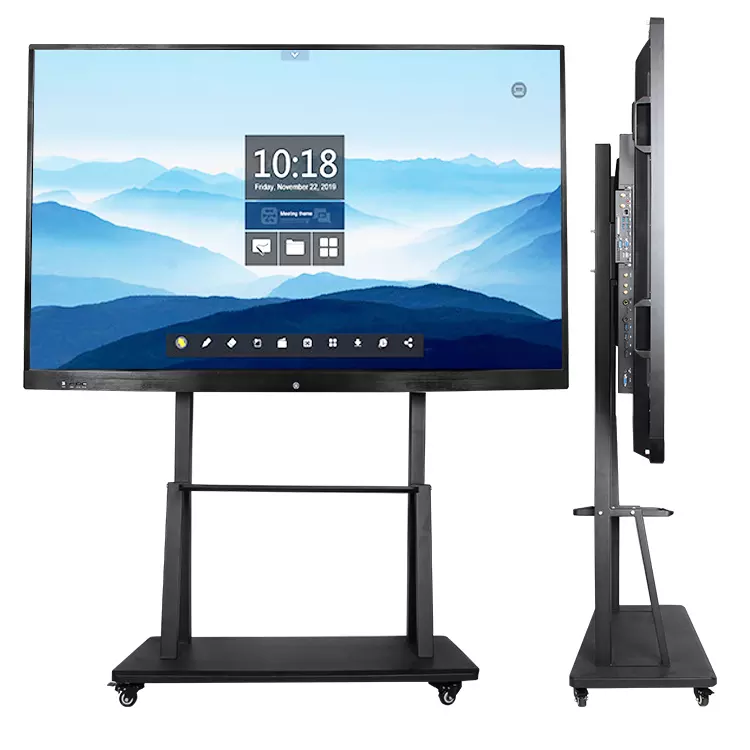

75”Interactive Whiteboard

Feature:

1. 4K UHD can display a crystal clear image on screen.

2.Built-in WIFI modules on the Android motherboard and PC in the machine, which are convenient for users to perform wireless transmission and network operations through WIFI.

3.Support side-pull touch menu, support any channel writing, annotation, screenshot function; child lock function, button function can be shielded by setting, etc. Front-mounted expansion port:

 4.Child Lock to avoid student malfunction and secure privacy. support to lock screen and power on/off button at the same time.

5.Front remote control window is convenient for users to use the remote control to operate, set and debug the machine. Front speaker sound, honeycomb sound hole.

Aluminum alloy outer frame, sandblasted anodized surface, iron shell back cover, active heat dissipation; ultra-narrow sandblasted face frame, ultra-narrow design, the face frame of the whole machine is only 26mm on one side.

6.20 Touch Points enable an interactive and collaborative atmosphere in classroom and meeting room.

7.3mm physical tempered anti-glare glass; strengthen the visual effect, improve the touch experience; standard 20-point touch, faster writing speed, the best writing experience.

  • Product Detail

Touch Function

Touch Screen

Touch embedding

Type

10 points Infrared Touch in Android system /
20 points in Windows system if has OPS

W riting Style

Finger, stylus pen

Cursor Speed

120 dots/s

Positioning Accuracy

More than 90% of the touch area is + 2mm

Touch resolution

32767*32767

Computer response

Automatic recognition of the system  ≤ 15ms

Display

Panel

75"  full view angle screen, LED backlight

Resolution

 3840*2160

Viewing angles

178(H),178(V)

Contrast ratio

30001

Brightness

330 nits

Aspect Ratio

16:9

Network

WiFi

2.4G

3G/4G optional

extra cost

Ethernet RJ45

yes

Buletooth

yes

Interface

Front Side Interface

TOUCH 1;;USB-C 1;USB 3;Front keys Power on/off;  Signal source;  Eco; Main page;  Menu;  Volume down;  Volume up


Side Interface

HDMI 2;TOUCH 1;USB2.0 1;USB3.0 2;USB-C 1

Rear Interface

LAN IN 1;LAN OUT 1;RS232 1;HDMI OUT 1;SPDIF OUT 1;YPBPR 1;AV IN 1;AV OUT 1;MIC 1;EARPHONE 1;AUDIO IN 1;VGA IN 1

Media play

Video format

MPEG-1/2/4,AVS2 MP,H.264,H265,VP9

Audio Format

MP3,AAC,WMA,RM,FLAC

HD Video

480i / 480p / 576i / 576p / 720p / 1080i / 1080p /2160p

Support function

Support one-key power on/off and one-key energy saving;writing function without PC;touch menu function, switching between each channel

Support web browsing;local and online HD video playback, support 1080P playback;local and online music playback;

Support to browse pictures in various formats;the browsing and management of various files such as office;USB update software

Support WIFI wireless Internet access function;wireless mirorring;Annotations  Mobile phone, computer, tablets wireless screen sharing

Anti-glare AR glass

Yes

Others

Power consumption

Max power consumption: ≤110WOPS not included;Standby : ≤0.5W

Speaker

2*10W

Temperature

-20 to 60degrees

Language

Multi-language

Adapter

Internal power board (AC100V-240V, 50/60Hz)

Accessories

User Manual*1, ;Warranty Card*1; Remote control*1;Stylus*2;1.8m power cord *1;108*10mm WIFI antenna*1;1.5m HDMI cable *1;1.5m USB touch cable *1;wall mount kit
